Format-Led Selection
Transfer and working chambers with interlocked doors.
Equipment Reference Image · The Supplied Configuration Is Confirmed Against Your Project.
Cleanroom & Isolation Systems
Define Protection At The Point Where The Process Needs It
An enclosed system for sterility testing and related controlled operations. HEPA filtration, VHP decontamination and PLC control separate the working zone from the surrounding environment.
Discuss This Equipment See Specifications ↓Define The Format → Review The Process → Agree The Configuration → Confirm The Acceptance PlanBuild Your Specification ↗
01 / Core Advantages
Core Advantages For Your Production Brief
Process-Focused Engineering
Four- or eight-glove station configurations are listed in the technical schedule.
Clear Integration Scope
H14 filtration and hydrogen-peroxide decomposition filtration.
02 / Specification
Technical Specifications
| Parameter | Reference Configuration |
|---|---|
| Overall Dimensions (mm) | 2650 x 750 x 2250; 2650 x 1200 x 2250 |
| Transfer Chamber Usable Size (mm) | 850 x 600 x 800 |
| Working Chamber Usable Size (mm) | 1800 x 600 x 800; 1800 x 1200 x 800 |
| Glove Stations | 4 gloves, round-cuff ; 8 gloves, round-cuff |
| Airflow Pattern | Unidirectional airflow in both chambers (Grade A) |
| Door System | Interlocked doors |
| Filtration | H14 filtration + H14 HEPA filter + peroxide decomposition filter |
| Control System | PLC control |
| Integrated Monitoring | Online particles and viable-air monitoring |
| Supply / Power | 220 V/5 kW |
Brochure-listed values vary by configuration. Confirm the selected format, utilities, output and acceptance conditions in the quotation.
03 / Features
Features That Shape The Selected Equipment

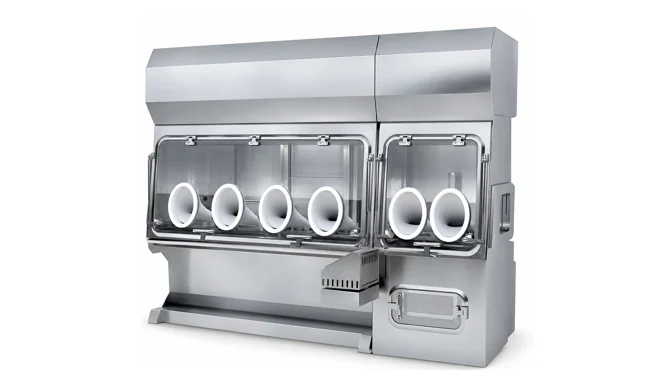

Sterility Testing Isolator
Transfer and working chambers with interlocked doors.
Pharmaceutical Sterility Test Isolator
Four- or eight-glove station configurations are listed in the technical schedule.
Sterility Test Containment System
H14 filtration and hydrogen-peroxide decomposition filtration.
Configuration & Acceptance
Online particle and viable-air monitoring can be integrated.
04 / Customization
Configure The Equipment Around Your Product
The following configuration discussions use the supplied product and detail images. Availability is reviewed for the selected equipment.
Configuration Discussion
Container & Format Review
Review drawings and representative samples before selecting the tooling and container range.
Configuration Discussion
Process & Machine Detail
Review access, transfer and the process features required for the proposed configuration.
Configuration Discussion
Integration & Output Planning
Agree the operating rate and acceptance conditions for the complete process, including connected equipment.
05 / Product Selection
Explore Related Equipment In This Family
Cleanroom & Isolation Systems

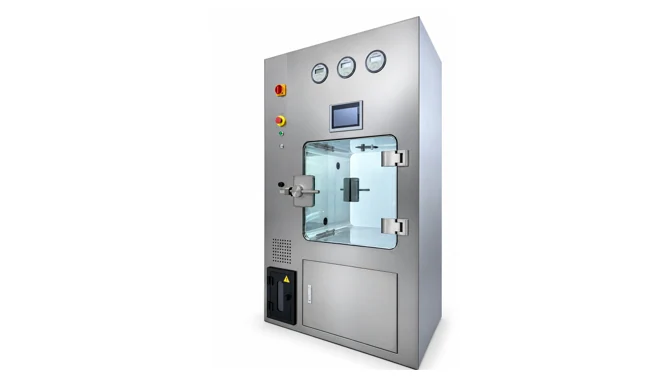

VHP Material Transfer Chamber
A sealed transfer chamber using vaporized hydrogen peroxide to decontaminate materials moving between controlled areas.
View Product Details ↗
Cleanroom & Isolation Systems

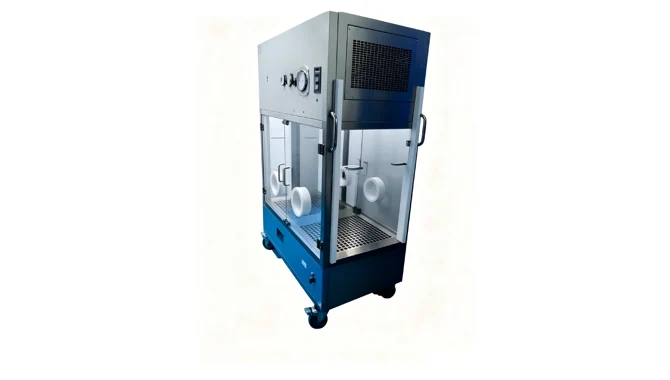

Laminar Transfer Trolley And Clean Bench
A mobile laminar-airflow trolley supports protected transfer between process stations.
View Product Details ↗
Cleanroom & Isolation Systems
Grade A Laminar Airflow Hood
A compact clean-air unit combining prefiltration, HEPA filtration, a fan, lighting and airflow control.
View Product Details ↗
Cleanroom & Isolation Systems
Negative-Pressure Weighing Booth
A contained weighing and dispensing booth incorporating a work zone, return-air section, HEPA filters, variable-speed fans and PLC control..
View Product Details ↗
Cleanroom & Isolation Systems
HEPA Air Supply Terminals
Terminal HEPA filtration units for cleanrooms and controlled manufacturing environments.
View Product Details ↗06 / Applications
Match The Equipment To The Application
Sterility Testing
Send the actual product format, material and operating requirements so suitability can be reviewed for this application.
Explore Applications ↗Enclosed Controlled Testing Operations
Send the actual product format, material and operating requirements so suitability can be reviewed for this application.
Explore Applications ↗VHP-Integrated Testing Workstations
Send the actual product format, material and operating requirements so suitability can be reviewed for this application.
Explore Applications ↗07 / Optional Configuration
Review The Options That Affect Your Order
08 / Comparison
Compare The Complete Process And Material Route
Stainless steel finish, seal materials and transparent panels must be assessed for the intended cleaning agents and decontamination process. Material selection does not by itself establish environmental classification or cycle efficacy.
Compare the same format, throughput, contact conditions and operating scope. Similar equipment names do not establish interchangeability.
Review The Selection Checklist ↗09 / Project Support
A Coordinated Equipment Enquiry, From Drawing To Delivery
Work with a team that connects container requirements, processing equipment and downstream handling in one project discussion.
- One specification brief for purchasing and engineering.
- Configuration review against the actual product format.
- Quotation boundaries and documentation agreed before order.
Request available footage relevant to the selected equipment and process.
10 / Packaging & Delivery
Packaging, Dispatch And Installation Planning
Confirm preservation, protective packing, shipment split, lifting points and transport conditions in the agreed order scope. Review installation access and the equipment layout before dispatch; final packing dimensions and delivery dates are provided for the confirmed configuration.
Approve The Scope
Reference the agreed layout, configuration, inspection points and documentation in the order.
Confirm The Packing
Agree preservation, lifting access, shipment split and packing dimensions for the confirmed equipment.
Plan The Arrival
Coordinate delivery terms, receiving access, utilities and the installation responsibilities.
11 / Featured Equipment
Build A More Connected Equipment Selection
12 / FAQ
Frequently Asked Questions
Does Installing This Unit Automatically Establish Aseptic Conditions?
No. Room integration, operating procedures, cleaning, airflow or decontamination qualification, and the intended load determine the qualified process result.
Which Sizes And Operating Ranges Are Listed?
Transfer chamber usable size (mm): 850 x 600 x 800. These are brochure-listed values; confirm the complete format range for the intended configuration.
Can The Listed Production Rate Be Guaranteed For Every Product?
Listed rates are selection references. Actual output depends on the material, format, process settings and integrated line conditions; agree the acceptance conditions before ordering.
Can This Equipment Connect To Our Existing Line?
Interface feasibility requires a layout and control review. Submit conveyor heights, transfer direction, utilities and upstream/downstream equipment details so the integration scope can be defined.
What Should Be Included In A Quotation Request?
Include drawings and samples, required output, process targets, utilities, installation location, documentation needs and delivery destination. This supports a configuration-specific quotation.
13 / International Project Planning
Plan Your Project For The Destination Market
Local operating conditions and documentation requirements belong in the enquiry from the beginning. Discuss the requirements for your destination with our team.
North America
Machine access, electrical requirements and documentation scope.
Europe
Project standards, language requirements and the conformity documentation needed for the proposed supply.
Middle East
Utilities, environmental conditions and import documentation.
South & Southeast Asia
Format flexibility, operator access and production-line interfaces.
Latin America & Africa
Installation planning, parts requirements and export packing scope.
Project-Led Equipment Selection
Turn Your Requirements Into A Practical Production Scope.
01
Container & Product Format
Start with the drawing, material and format range. Identify the neck, body, closure or packaging requirements that affect the machine.
02
Process & Output
Define the target process, production rate and acceptance conditions. Compare complete configurations rather than isolated catalogue numbers.
03
Controls & Line Integration
Discuss transfer direction, utilities, operating access and interfaces to upstream and downstream equipment.
04
Documentation & Delivery Scope
Agree the quotation scope, inspection plan, packing, destination and installation responsibilities for the selected equipment.
